Exploring Global Trends in Tuberculosis Incidence Rates

Sam Abbott

2020-01-22

This case study investigates global trends in Tuberculosis incidence rates and explores whether Tuberculosis eradication is on the horizon. It was adapted from this blog post. To get started the first step is to get the package, as well as loading other packages required for the analysis.

# install.packages("getTBinR")
library(getTBinR)
#  install.packages("tidyverse")
library(tidyverse)
# install.packages("viridis")
library(viridis)

The package is loaded, time to get the data. We download both the data itself and it’s accompanying data dictionary.

tb_burden <- get_tb_burden()
dict <- get_data_dict()

We want to explore incidence rates so we need to find them in the data. We can do this using the getTBinR::search_data_dict function,

search_data_dict(dict = dict, def = "incidence", verbose = FALSE) %>%
  knitr::kable()

variable_name	dataset	code_list	definition
e_inc_100k	Estimates		Estimated incidence (all forms) per 100 000 population
e_inc_100k_hi	Estimates		Estimated incidence (all forms) per 100 000 population, high bound
e_inc_100k_lo	Estimates		Estimated incidence (all forms) per 100 000 population, low bound
e_inc_rr_num	Estimates		Estimated incidence of rifampicin resistant TB (absolute number)
e_inc_rr_num_hi	Estimates		Estimated incidence of rifampicin resistant TB (absolute number): high bound
e_inc_rr_num_lo	Estimates		Estimated incidence of rifampicin resistant TB (absolute number): low bound
e_inc_tbhiv_100k	Estimates		Estimated incidence of TB cases who are HIV-positive per 100 000 population
e_inc_tbhiv_100k_hi	Estimates		Estimated incidence of TB cases who are HIV-positive per 100 000 population, high bound
e_inc_tbhiv_100k_lo	Estimates		Estimated incidence of TB cases who are HIV-positive per 100 000 population, low bound
e_inc_tbhiv_num	Estimates		Estimated incidence of TB cases who are HIV-positive
e_inc_tbhiv_num_hi	Estimates		Estimated incidence of TB cases who are HIV-positive, high bound
e_inc_tbhiv_num_lo	Estimates		Estimated incidence of TB cases who are HIV-positive, low bound

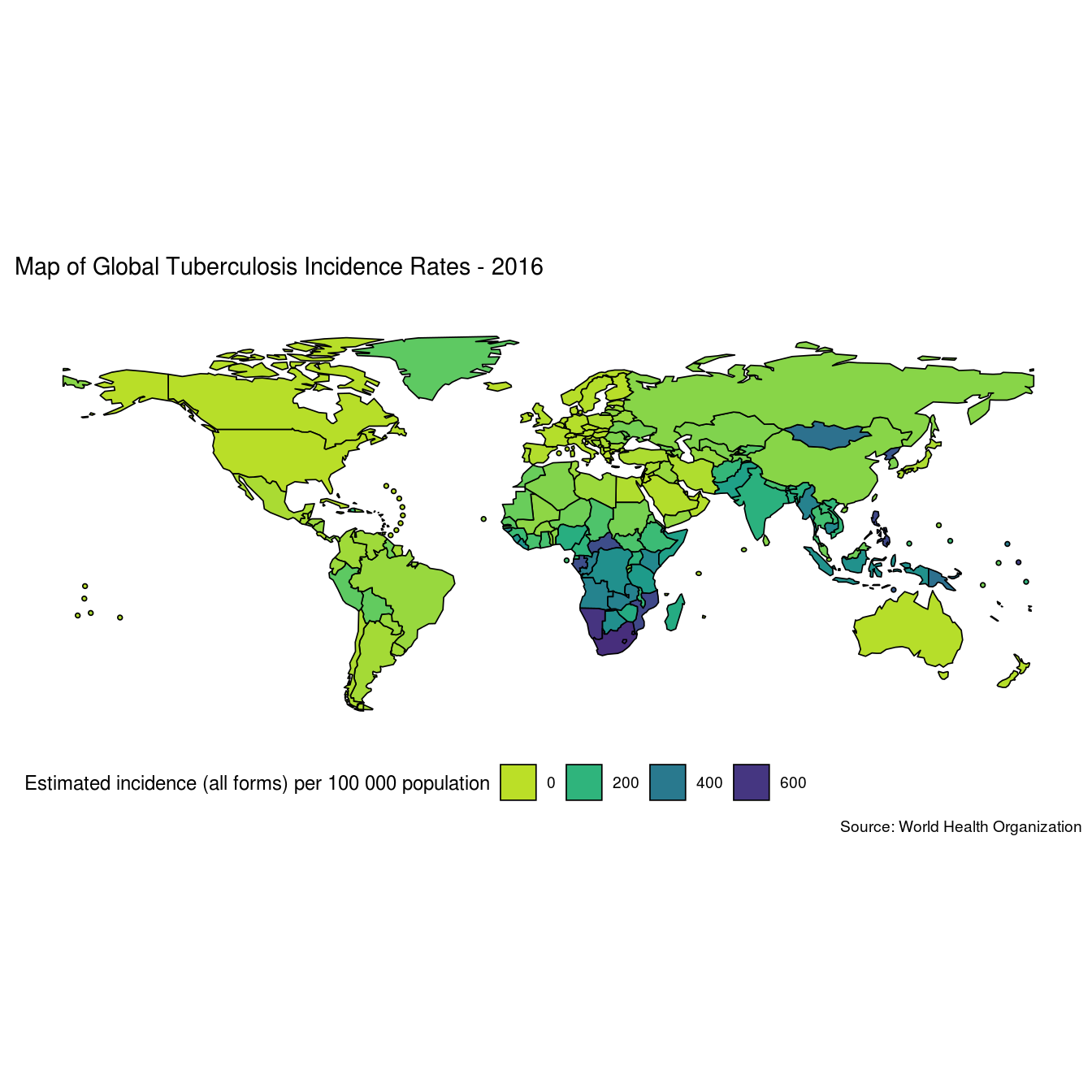

The first hit, e_inc_100k, is the TB incidence rate, with the next two variables being the lower and upper bounds of this estimate. For a quick overview lets map country specific incidence rates in 2016 using the getTBinR function map_tb_burden,

map_tb_burden(df = tb_burden, dict = dict, year = 2016,
              metric = "e_inc_100k", verbose = FALSE) +
  labs(title = "Map of Global Tuberculosis Incidence Rates - 2016",
       subtitle = "", caption = "Source: World Health Organization")

This shows that incidence rates are highly heterogeneous between regions. To get an better understanding of this lets plot incidence rates by WHO region (Note: This functionality has now been implemented into the getTBinR using getTBinR::plot_tb_burden_summary(metric_label = "e_inc_100k", legend = "none", facet = "Area", scales = "free_y", compare_to_world = FALSE)),

tb_inc_region <- tb_burden %>%
  group_by(year, g_whoregion) %>%
  summarise_at(.vars = vars(e_inc_num, e_inc_num_lo, e_inc_num_hi, e_pop_num),
               .funs = funs(sum(as.numeric(.), na.rm = T))) %>%
  mutate_at(.vars = vars(e_inc_num, e_inc_num_lo, e_inc_num_hi),
            .funs = funs(inc_rate = . / e_pop_num * 1e5))
#> Warning: funs() is soft deprecated as of dplyr 0.8.0
#> Please use a list of either functions or lambdas:
#>
#>   # Simple named list:
#>   list(mean = mean, median = median)
#>
#>   # Auto named with `tibble::lst()`:
#>   tibble::lst(mean, median)
#>
#>   # Using lambdas
#>   list(~ mean(., trim = .2), ~ median(., na.rm = TRUE))
#> This warning is displayed once per session.

plot_tb_inc_region <- function(df = NULL, title = NULL, subtitle = NULL, scales = NULL) {
  df %>%
      ggplot(aes(x = year, y = e_inc_num_inc_rate, col = g_whoregion, group = g_whoregion)) +
  geom_point() +
  geom_linerange(aes(ymin = e_inc_num_lo_inc_rate, ymax = e_inc_num_hi_inc_rate)) +
  geom_line() +
  scale_colour_viridis(discrete = TRUE) +
  labs(title = title, subtitle = subtitle,
       x = "Year", y = "Tuberculosis Incidence Rates (per 100,000 population)",
       caption = "Source: World Health Organization") +
  theme_minimal() +
  theme(legend.position = "none") +
  facet_wrap(~g_whoregion, scales = scales)
}

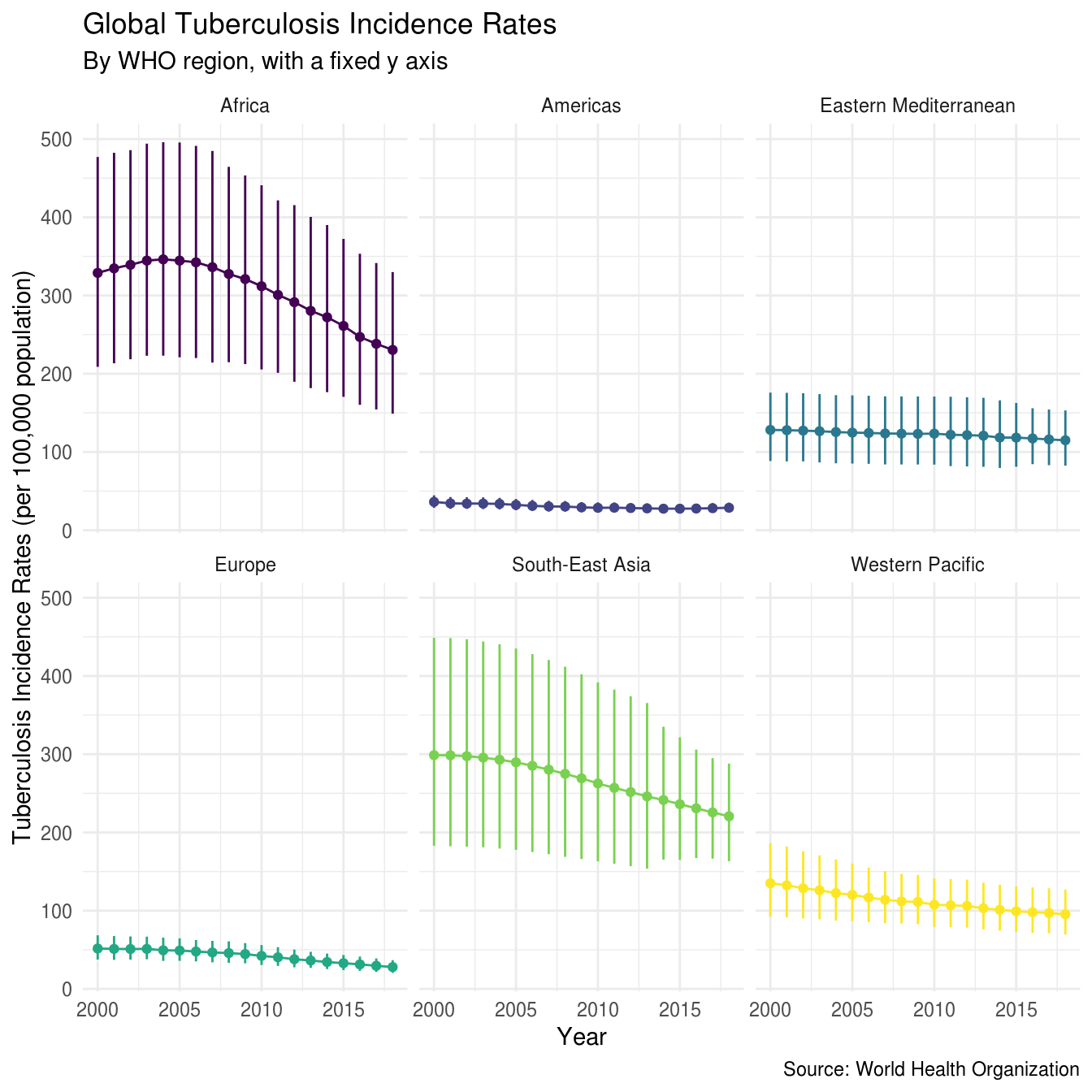

tb_inc_region %>%
  plot_tb_inc_region(title = "Global Tuberculosis Incidence Rates",
                     subtitle = "By WHO region, with a fixed y axis",
                     scales = "fixed")

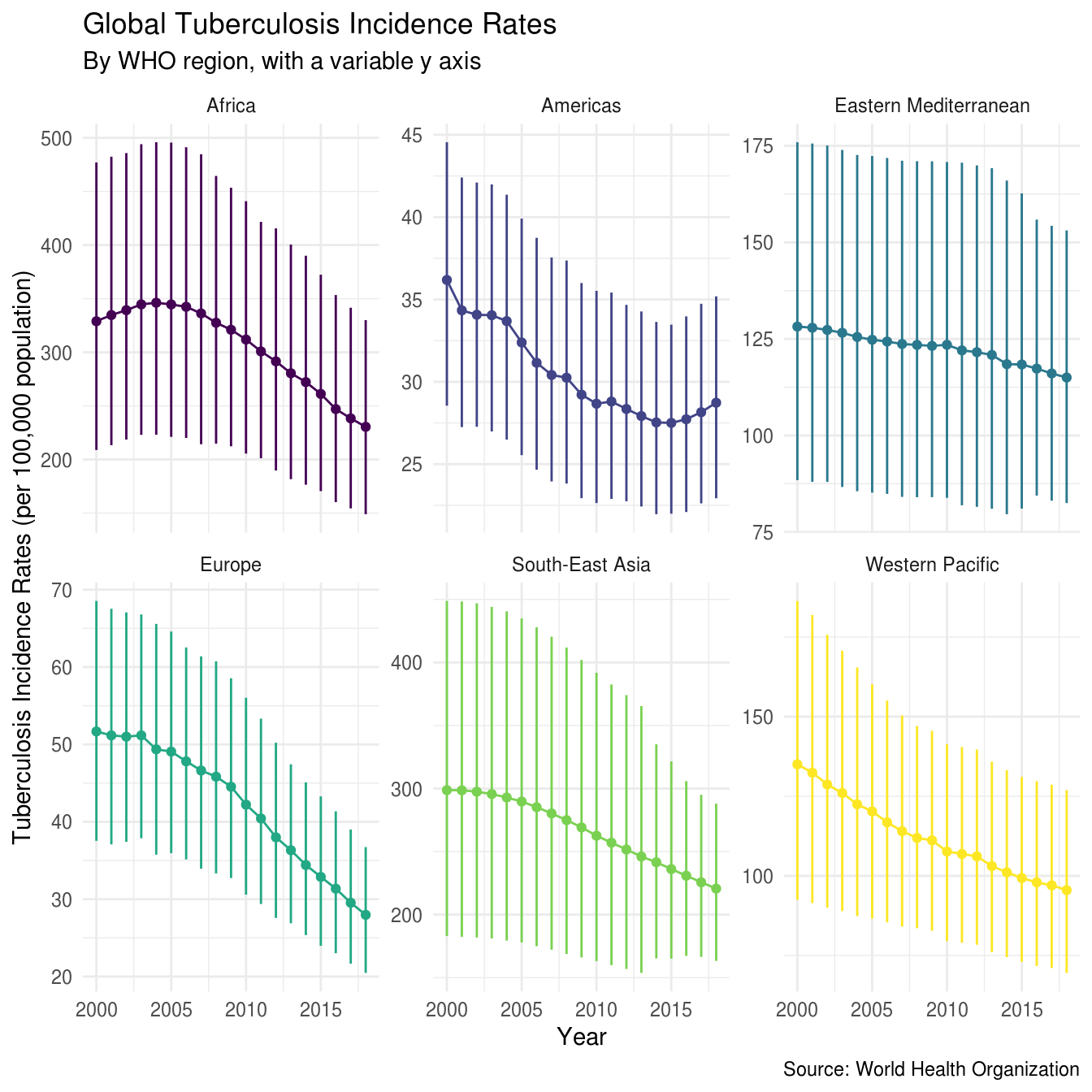

We see that incidence rates are much higher in Africa, and in Asia, than in other regions, and that incidence rates in the Americas and Europe are the lowest. This chart has a fixed y axis which makes it hard to see trends over time within regions, if we repeat it with a free y axis the trends over time become more apparent,

tb_inc_region %>%
  plot_tb_inc_region(title = "Global Tuberculosis Incidence Rates",
                     subtitle = "By WHO region, with a variable y axis",
                     scales = "free_y")

This plot shows that Tuberculosis incidence rates are decreasing in all regions, which is a great sign for the elimination of Tuberculosis. However whilst this is true on the regional level it may not be true for all countries in the data set, something that is required to truly eradicate Tuberculosis. To explore this we find the countries that had higher incidence rates in 2016 than in 2000.

countries_inc_up <- tb_burden %>%
  filter(year %in% c(2000, 2016)) %>%
  group_by(country) %>%
  arrange(desc(e_inc_100k)) %>%
  slice(1) %>%
  filter(year == 2016) %>%
  pull(country)

high_inc_countries <- tb_burden %>%
  filter(year == 2016) %>%
  group_by(country) %>%
  summarise(e_inc_100k = max(e_inc_100k)) %>%
  ungroup %>%
  arrange(desc(e_inc_100k)) %>%
  slice(1:20) %>%
  pull(country) %>%
  unique

high_inc_up_countries <- intersect(countries_inc_up, high_inc_countries)

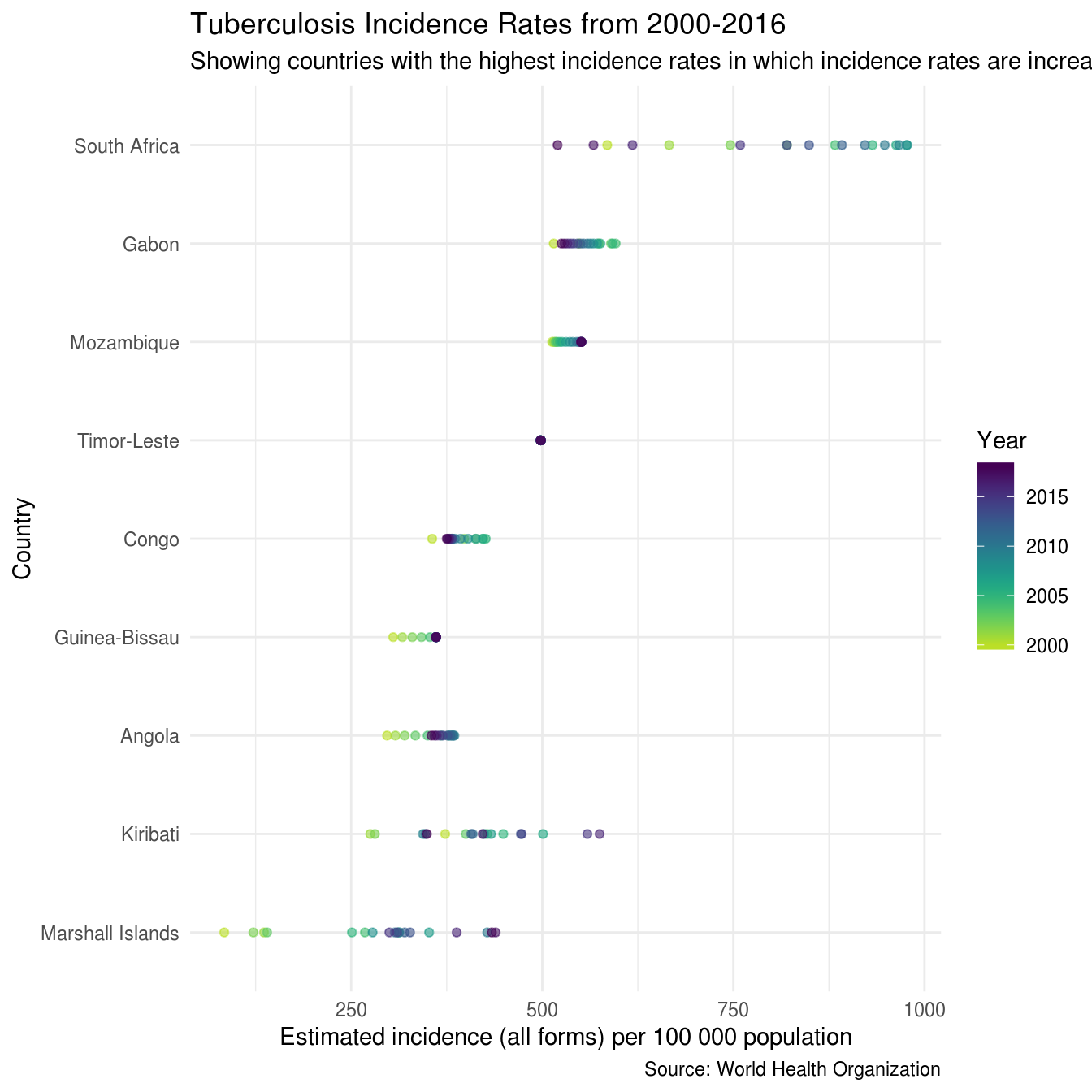

This results in a list of 49 countries all of which had higher incidence rates in 2016 than in 2000. Of these countries 9 were in the top 20 countries by incidence rate in 2016. This can plotted below using getTBinR::plot_tb_burden_overview,

plot_tb_burden_overview(df = tb_burden,
                        dict = dict,
                        metric = "e_inc_100k",
                        countries = high_inc_up_countries,
                        verbose = FALSE) +
  labs(title = "Tuberculosis Incidence Rates from 2000-2016",
       subtitle = "Showing countries with the highest incidence rates in which incidence rates are increasing",
       caption = "Source: World Health Organization")

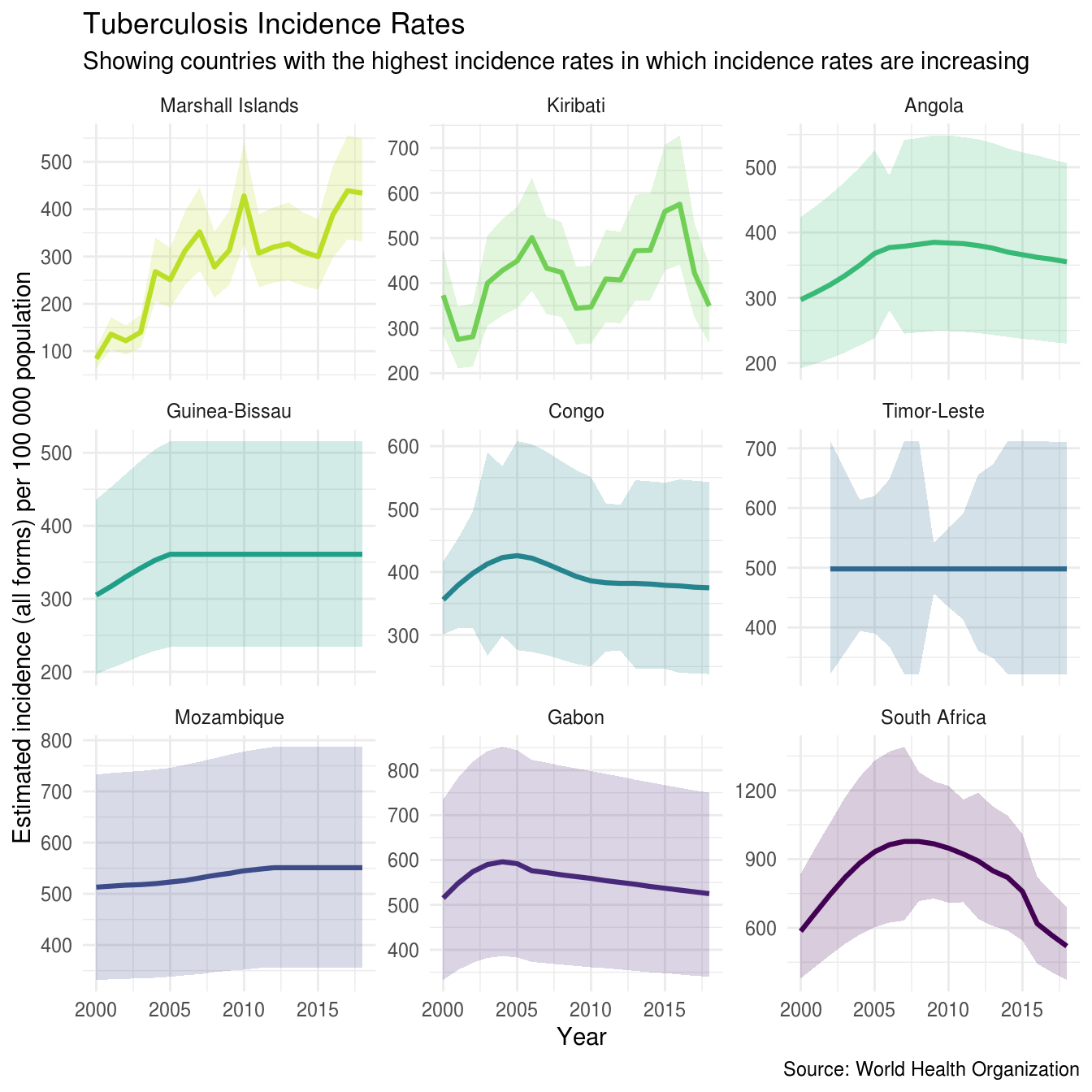

GetTBinR also supplies another function (plot_tb_burden) that can be used to visualise this,

plot_tb_burden(df = tb_burden,
               dict = dict,
               metric = "e_inc_100k", countries = high_inc_up_countries,
               facet = "country", scales = "free_y", verbose = FALSE) +
  labs(title = "Tuberculosis Incidence Rates",
       subtitle = "Showing countries with the highest incidence rates in which incidence rates are increasing",
       caption = "Source: World Health Organization")

A possible cause of this may be that reporting of Tuberculosis notifications has improved over time, to understand this we first find the required variable in the data,

search_data_dict(dict = dict, def = "detection", verbose = FALSE) %>%
  knitr::kable()

variable_name	dataset	code_list	definition
c_cdr	Estimates		Case detection rate (all forms) [also known as TB treatment coverage], percent
c_cdr_hi	Estimates		Case detection rate (all forms) [also known as TB treatment coverage], percent, high bound
c_cdr_lo	Estimates		Case detection rate (all forms) [also known as TB treatment coverage], percent, low bound
lf_urine_lam	Policies and services	0=No; 1=yes	Does national policy and the diagnostic algorithm indicate the use of the lateral flow urine lipoarabinomannan assay (LF-LAM) to assist in the detection of TB in people living with HIV?

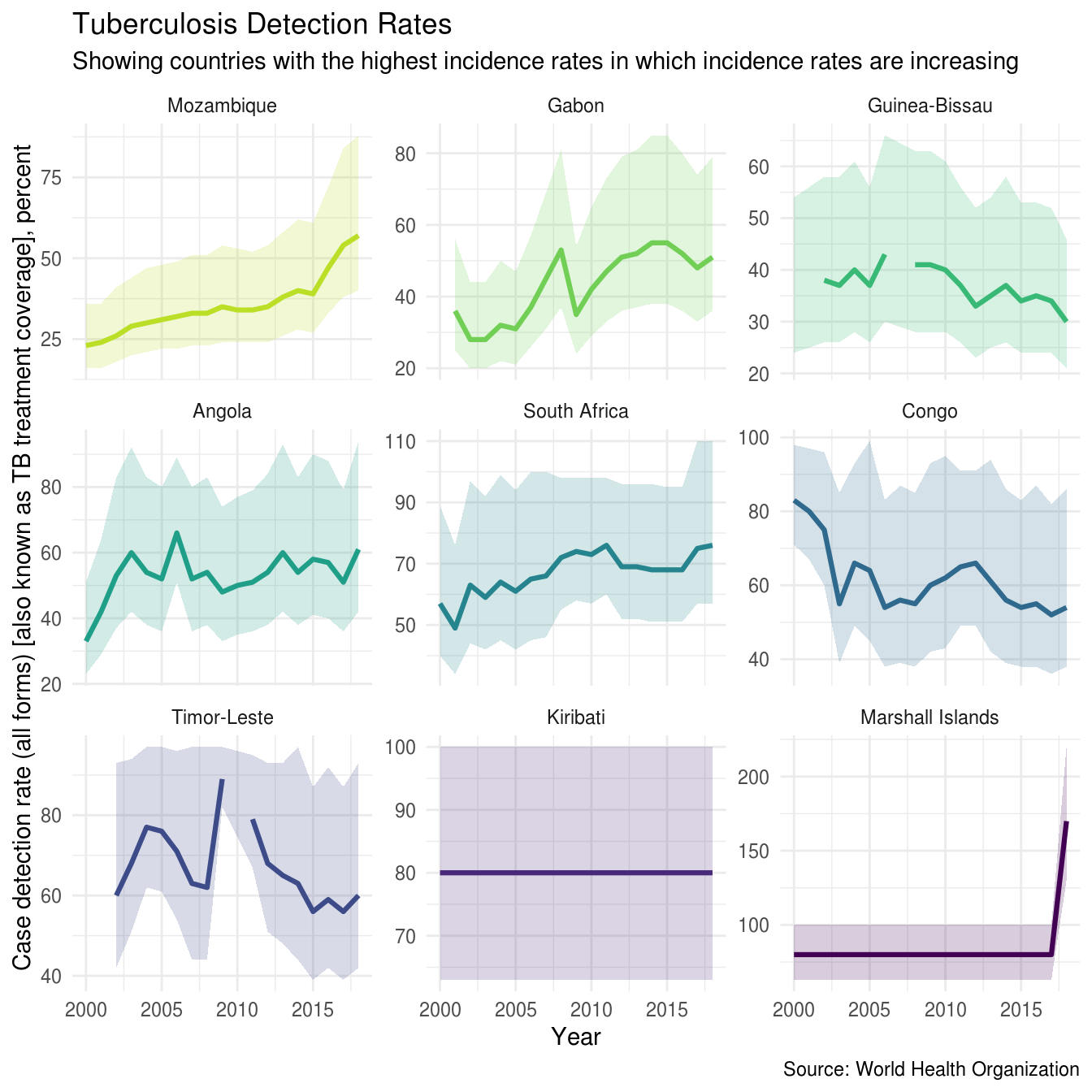

We then plot the case detection rate over time in the countries of interest,

plot_tb_burden(df = tb_burden,
               dict = dict,
               metric = "c_cdr", countries = high_inc_up_countries,
               facet = "country", scales = "free_y", verbose = FALSE) +
  labs(title = "Tuberculosis Detection Rates",
       subtitle = "Showing countries with the highest incidence rates in which incidence rates are increasing",
       caption = "Source: World Health Organization")

The plot above shows that for some countries such as Mozambique and South Africa the increases in incidence rates may be linked to increases in the cases detection rate. However, it is clear that this is not the case for all countries, in particular the Congo which has seen increasing incidence rates and falling case detection rates.

This case study has highlighted the fact that whilst Tuberculosis is declining globally this is not the case in all countries. In order for the global eradication of Tuberculosis to be a success it is vital that resources are targeted at those countries which are struggling to reduce their incidence rates.
